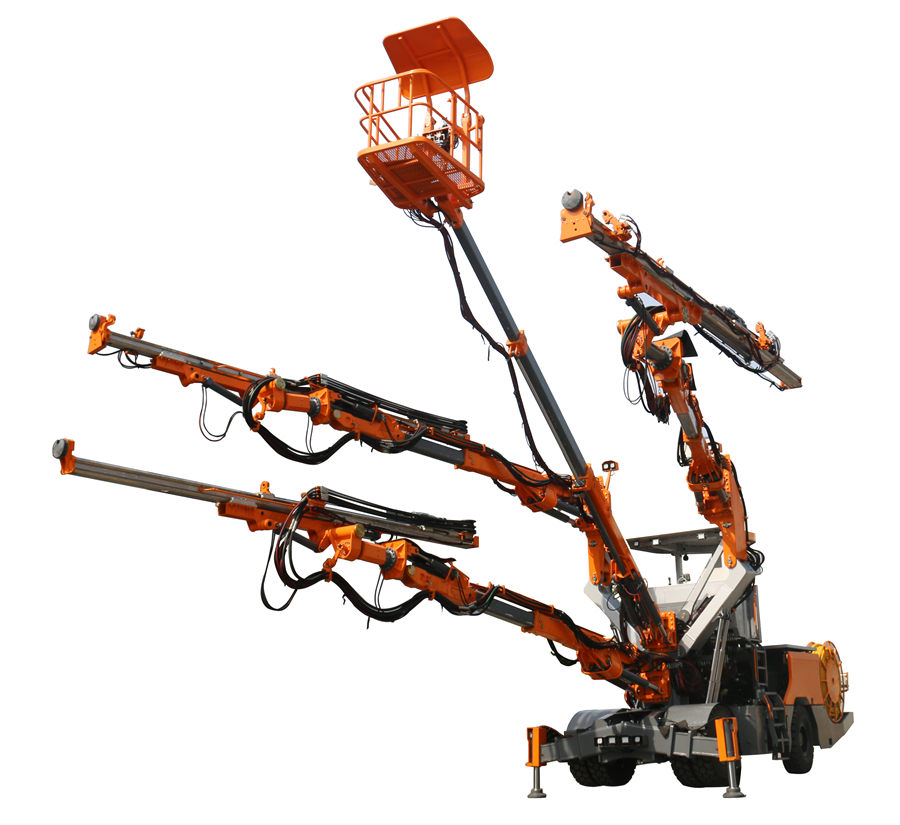

Service Platform

 Parallel Holding

 Total

 Boom Swing angle

±45º

      Max.Working Height(from Botton)：12000mm

Rated Load

600kg

Feed

 Total Length

6110mm

6776mm

7386mm

7996mm

 Rod Length

4305

4915

5525

6135

 Rod Depth

4013

4623

5223

5843

 Lift Force

20.0KN

20.0KN

20.0KN

20.0KN

（ZY104) Drifter(ZY104)

 Jumbo top to rotation unit center

88mm

 Rotation Speed

0-388rpm

Impacting Power

20kW

Rotation torque(Max.)：680N.m

Impacting Frequency

60Hz

 Weight

170Kg

 Boom

 Feed Extension

1800mm

Boom lifting angle(Max.)

"+68º/-45º

 Boom Extension

1600mm

Boom Swing angle(Max.)

±45º

 Parallel Holding

Total

 Feed tilt

"+3º/-90º

 Feed Beam roll over

360º

 Electric system

 Total power

220kW

 Starting Mode

Star/Delta/Unloading start

  Main electric motor

3*55kW

 Voltage

380V

  Dimensions

3*185+3*95/3mm²

 Frequency

50-60Hz

 Cabl reel  capacity

100M

Shank adaptor

  Thread

Diameter

 Length

T38

38mm

525mm

R32

32mm

525mm

 Screw air compressor system

 Pressure

7bar

 F.A.D

1m³/min

  Electric Pressurized  Water Pump

 Max.working pressue

17bar

 Max.Flow

300L/min

 Water hose reel capacity

100m

 Power

15kW

 Chassis

 Diesel Engine

 Cummins QSL8.3-C240-III

Rated engine power（2，200rpm):179kW

 Approach angle&departure

15º

Tyre

14.00*R24

 Hydraulic support leg

4 PCS

 Driving brake

Two independent loops

 Emergency stop & parking brake

SHAR

 Fuel tank capacity

150L

 Gradient at Max.Load

"1:4

 Hydraulic Oil Tank

750L

 Tramming speed

17/10/5km/h

Rods

T38-D38-T38*6135mm

φ64-89mm bolting

R32-D32-R32*6135mm

φ64-89mm bolting

T38-H32-R32*6135mm

 Face drilling
